Written by Kees Verruijt on Jan 19, 2013 for Panbo, The Marine Electronics Hub

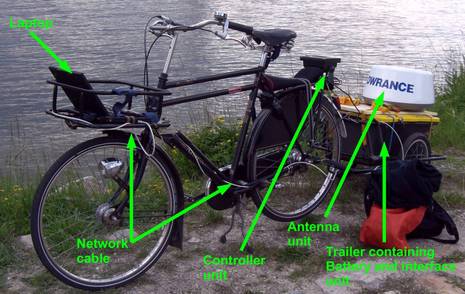

Sometimes news stays under the (ahem) radar for quite a while. Today's story starts with the Austrian university project Roboat (for RObotic BOAT) needed a self-tuning radar scanner that could be used to avoid moving targets. In 2011 they started reverse engineering the Ethernet traffic from a BR24 radar scanner. They used the above test rig so that they could drag their development hardware out to a side arm of the Donau in Vienna.

Note: Our American readers may not be aware but the above retro style bicycle is the sort of thing that modern Euro hipsters drive around town in. The double top bar and front carrying cradle are the attributes that make this bike so much cooler than granddad's version. Such a nice test rig has seldom been observed!

You can read up on the research that was done at the University of Vienna by Adrian Dabrowski, Sebastian Busch and Roland Stelzer over at the openbr24 project on SourceForge. They also published a paper titled "A Digital Interface for Imagery and Control of a Navico/Lowrance Broadband Radar" in the Proceedings of International Robotic Sailing Conference published by Springer. The pre-press article in PDF is accessible on the project page.

It will be interesting to hear when the roboat project, whose goal it is to develop completely autonomous boats that generally use either solar PV cells or wind (sails!) to get from A to B, will integrate their radar picture and start steering based on radar. As far as I'm aware they are still in the integration phase. I'm not so sure us real boaters really care about autonomous boats but whatever they get to there is going to be a huge spin-off, and the first result is already here as you'll see below.

From research to reality - Garmin plugin for OpenCPN

I'm not superstitious but I do believe in serendipity: in early 2012 Dave Register, who is the lead developer of OpenCPN, was cruising in the Bahama's when he had access to a buddy's Garmin radar, and was apparently intrigued enough to find out how it worked and developed software to interface with it. In March 2012 he wrote this post on Cruisers Forum where he announced an OpenCPN plugin. At the moment if you have a Garmin ethernet radar scanner you can download OpenCPN and add a Windows plugin. If you run OS X or Linux you need to compile the plugin from source. In all versions your display driver must support OpenGL -- the code to do this on older video cards just hasn't been written yet. So this won't work on your old(er) laptop. You need something with a bit of horsepower in the videocard.

BR24 plugin for OpenCPN

After Dave Register started with the Garmin radar plugin it was quiet for a few months. Then late last year the research of Dabrowski, Busch and Stelzer (the guys with the bike) was picked up by Dave Cowell; he used Dave Register's Garmin code as a template to write a BR24 plugin for OpenCPN. His implementation allows you to use the BR24 (and 3G version) in OpenCPN. It can operate in "slave" mode, where the PC is just listening in on the data sent to the chartplotter, or in master mode where you don't need a chartplotter at all.

So I contacted Dave Cowell and he sent me a preliminary version of the plugin that I then installed and ran on my on-board PC just fine. Installing a plugin in OpenCPN is simple: drop the file in the plugin directory, then enable it in the settings pane. The user interface gains a new Radar button and if you right-click on the chart you can call up the tuning pane.

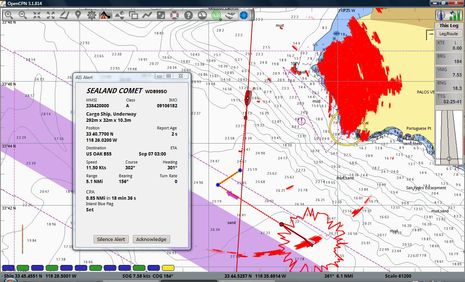

Wow! Easy as that. As you can see you can control the main radar settings such as gain, sea and rain clutter and signal rejection. You can use the software as the controller for the radar, or just have it listen in to any transmissions made when the control is done from the existing chartplotter. Note that I'm showing you a display with radar only. I could have shown you an overlay over charts but my PC currently doesn't have a heading interfaced to it so the overlay would just swing around as I only tested it whilst stationary and there was no reliable COG. OpenCPN will do radar overlay just fine as you can see below in a screenshot created by ChuckSK using the Garmin plugin:


To get this to work you will need to interface your PC via Ethernet to a free port on an existing switch in your marine device network, or introduce a new switch and plug everything in to that. In the case of the Garmin scanner you have to be careful with that, as the wiring standard (like Furuno) uses a 'free' wire to indicate power on/off to the scanner. Read Dave's Gradar documentation for more detail on that. If you use the Navico scanner you don't need to worry. The Navico cable is a 4 wire cable carrying just the standard 100TX data. Navico sells a Yellow-to-RJ45 conversion cable. See my 2010 post on Lowrance Yellow ethernet cabling for more information. The BR24 is quite smart: if it doesn't see a ping at least every ten seconds it assumes the display is down and stops transmitting. I also recommend interfacing heading information to OpenCPN so that the radar knows which way is up, independently of the GPS course over ground (which has been discussed on the Panbo forum.)

Personally I'm going to use this as a backup solution in case of an issue with my chartplotter.

Not done yet...

There has been a lot of interest when "free range" radar has been discussed previously on Panbo. But as you can imagine, the story is not yet complete. Many features that radars offer such as guard zones, EBL (Electronic Bearing Line) and (M)ARPA aren't implemented yet. The display algorithms that convert the data stream can be further improved. Resolution and sharpness can be improved. Other brands (Raymarine, Furuno) and types (Navico 4G) can be supported. Since this is done by only a few volunteers I'm sure help will be appreciated. I suggest that if you are willing and capable to help that you head over to the OpenCPN forum.
